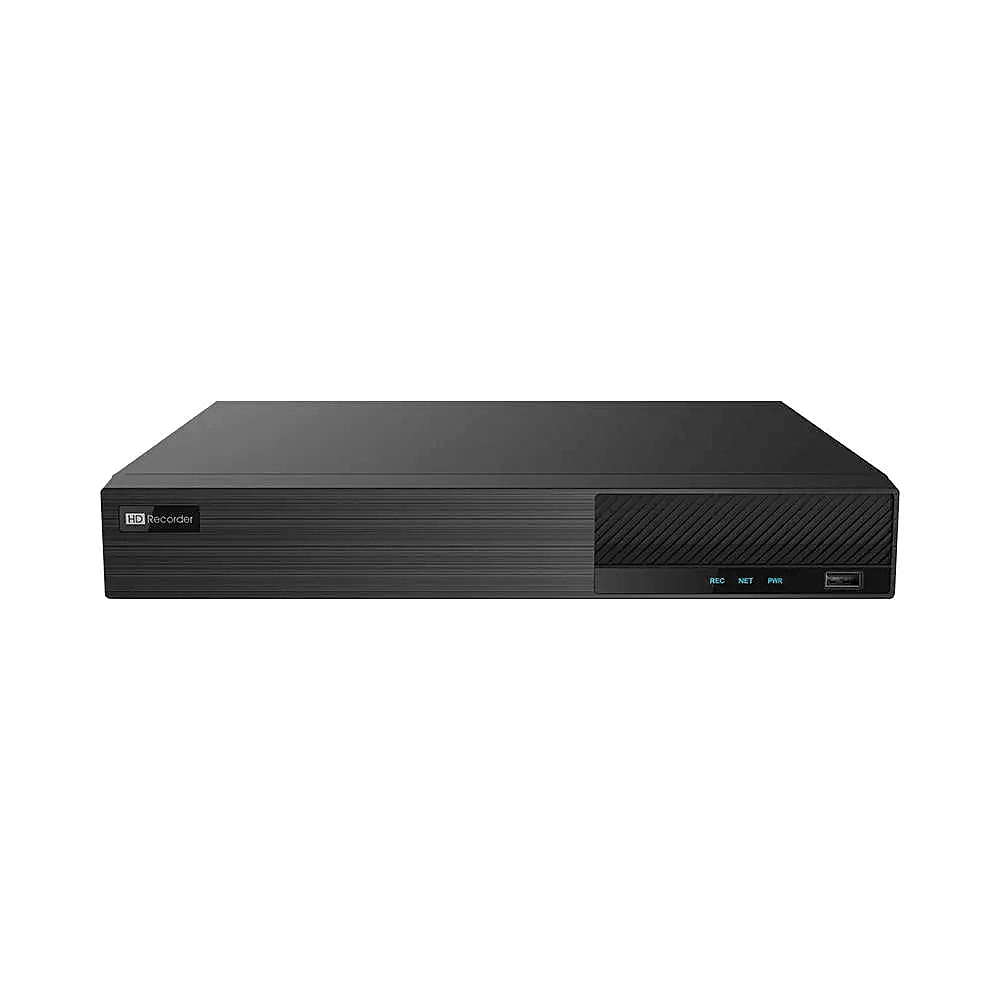

Titanium 4Ch 4PoE High Definition NVR ED9304H5NV-4P-3N

Titanium 4Ch 4PoE High Definition NVR ED9304H5NV-4P-3N

surveillance Networking Video Recorder(NVR), supports 4 Channel with 4POE network ports and supports 4 CH IPC direct connection to NVR, simultaneous 4 CH playback and 4K ultra high definition display. 8MP/6MP/5MP/4MP/3MP/1080P/ 1280×1024/960P/720P high definition IP video input, which adopts the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. Network Access/ Transfer Bandwidth in and out: 40/40Mb, Recording FPS: 4k@30FPS,High-Definition Multimedia Interface cable (HDMI) /Video Graphics Array connector (VGA) , Audio,1 Serial, Advanced Technology Attachment (SATA).The CCTV product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

Features



  • Support 4 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/DI/CIF IP video input
  • Adopt standard H.265 and H.264 high profile compression format to get high-quality video at the much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
  • Playback: 4 CH simultaneous playback
  • Search: time slice, time, event, tag, smart search
  • Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
  • Support POS information overlay on live view and playback
  • Express and flexible backup via USB, network, and so on
  • Pentaplex: preview, record, playback, backup, and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web or CMS: preview, playback, backup, PTZ, and configuration
  • 4 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Multi-user online simultaneously
  • Authorization management, log view, and device status view
  • 4K output, true high-resolution display
  • Support NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smart phones with iOS and Android OS

  • Datasheet
